|Voltage:||380/440/415||Pipe Material:||Carbon Steel|
|Pipe Shape:||Square Pipe||Pipe Diameter:||40mm*40mm-80mm*80mm|

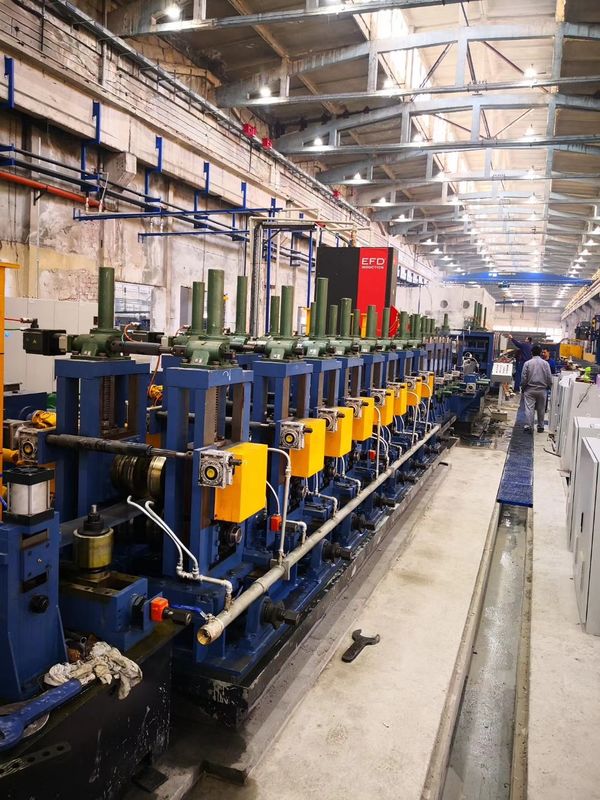

ZY80 direct forming Tube Mill high-frequency welded tube mill line is designed to produce Square and Rectangular tubes with size of □40×40 – □80×80mm, tube's wall thickness of 1.6mm–4.0mm.
Directly Forming to Square or Rectangular Tube: The Linear cage forming for square and rectangular tubes, can carry out the forming change operation in a very short time and without any replacement of rolls.
Advantage of the line: full automatic operation, Easy adjustment, good weld seam quality. Rigid machine structure. Easy operation and maintenance.
Technical assistance for production, quality control and maintenance by training of operators and document can be provided together with machine supply upon request, which is essential to ensure the highest quality of pipes and productivity.
1 .Raw material
Row material: Carbon Steel, Cold or Hot Rolled pre slit strip coils
Yield strength : Max 350 MPa
Coil width: 150mm – 320 mm
Coil O.D.: 1300mm –2200 mm
Coil I.D: 508mm-610 mm-760mm
Coil weight : Max 8 tons
2. Finish Products
Square tube: Min 40mmx40 mm, max 80mmx80 mm
Rectangle tube: Min 40x50 mm, max 70x90mm
Wall thickness square & rectangle tube: 1.6mm– 4.0mm
