20×20mm–150×150mm Low Alloy Tube Forming Machine for Square Tube Production up to 100 m/min

31.8- 88.9MM Tube Forming Machine for water pipe transportation, Construction Tube Production, Furniture Tube Making

Product Overview

The Low Alloy Tube Forming Machine for Square Tube Production is designed for manufacturers producing high-strength square and rectangular steel tubes from low alloy steel strip.

Compared with ordinary carbon steel tube production, low alloy steel offers higher strength, improved load-bearing performance, and better structural reliability. These advantages make it widely used in construction, infrastructure, transportation, machinery, and industrial fabrication.

However, higher material strength also creates new production challenges. Forming pressure increases, welding becomes more demanding, and dimensional control becomes more critical.

This machine is engineered to address these challenges while maintaining production speeds of up to 100 m/min for continuous square tube manufacturing.

Problem: What Problems Do Manufacturers Face?

Many tube manufacturers want to enter higher-value structural tube markets by producing low alloy square tubes.

However, machines designed for mild steel often struggle when processing stronger materials.

Common production problems include:

• Corner cracking during square forming
• Unstable weld seams at high speed
• Increased roll wear
• Poor dimensional accuracy
• Frequent production stoppages
• Reduced output due to slower line speeds

As a result, manufacturers may fail to meet structural standards or lose profitability because of excessive scrap and downtime.

The key question is not whether a machine can make square tube.

The real question is whether it can produce high-strength square tubes consistently at commercial production speed.

Cause

Low alloy steel typically has higher yield strength and tensile strength than ordinary carbon steel.

As strength increases, forming resistance also increases.

This affects every stage of production:

Higher Forming Load

The strip requires greater force to bend into round and square profiles.

If mill rigidity is insufficient, dimensional variation becomes more common.

Increased Welding Difficulty

At higher speeds, maintaining proper edge alignment becomes more difficult.

Any variation in strip preparation or squeeze pressure can affect weld integrity.

Greater Tooling Stress

Rolls experience higher pressure and friction.

Improper roll material selection may lead to accelerated wear and reduced sizing accuracy.

Corner Formation Challenges

Square tube corners are areas of concentrated deformation.

Without proper pass design, excessive strain can lead to corner thinning or cracking.

These factors explain why machines optimized for low-strength steel may not perform well when processing low alloy grades.

Solution

Zhongyue Metallurgy Equipment Technology designs low alloy square tube mills specifically for higher-strength materials and continuous high-speed production.

The solution combines robust mill construction, optimized roll pass design, stable welding technology, and precision sizing systems.

Reinforced Mill Structure

The forming and sizing sections are designed to withstand higher forming loads generated by low alloy steel.

Stable frame rigidity helps maintain dimensional consistency.

Optimized Roll Pass Design

Roll tooling is engineered to distribute deformation gradually.

This reduces stress concentration and improves corner quality.

High-Speed HF Welding System

The high-frequency welding section maintains consistent heat input and edge fusion even during high-speed operation.

Stable welding improves both strength and production efficiency.

Precision Sizing Technology

The sizing section controls final dimensions, corner shape, straightness, and twist.

This ensures repeatable product quality throughout long production runs.

Production Efficiency Focus

The machine is designed to support production speeds up to 100 m/min depending on tube size, wall thickness, steel grade, and quality requirements.

The objective is not simply maximum speed but stable commercial output with low scrap rates.

Specifications

Final specifications depend on customer drawings, steel grades, production targets, and project requirements.

Application

Structural Construction Tubes

Low alloy square tubes are widely used in steel buildings, industrial plants, warehouses, bridges, and infrastructure projects.

Higher material strength allows engineers to achieve structural performance while reducing overall steel consumption.

Transportation Equipment

Square tubes are used in truck frames, trailers, containers, and transportation support structures.

Dimensional consistency is critical for assembly accuracy.

Solar and Energy Structures

Many solar mounting systems require high-strength square tubes.

Low alloy steel provides improved load resistance while maintaining manageable weight.

Machinery and Equipment Frames

Industrial equipment often uses square tube frames because of their rigidity and fabrication convenience.

Consistent weld quality improves long-term durability.

Agricultural and Greenhouse Structures

High-strength square tubes support larger spans and longer service life in agricultural applications.

How It Works

The process begins with low alloy steel coil loading.

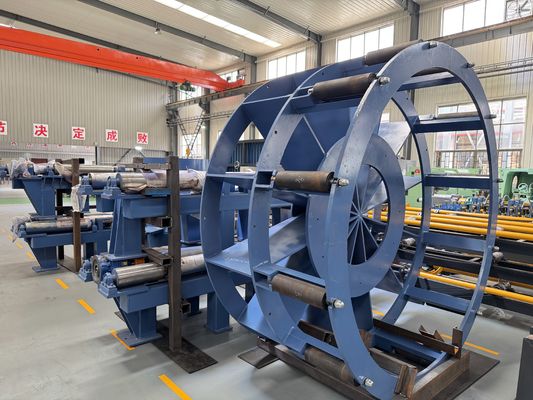

The strip is fed through an uncoiler and enters the forming section.

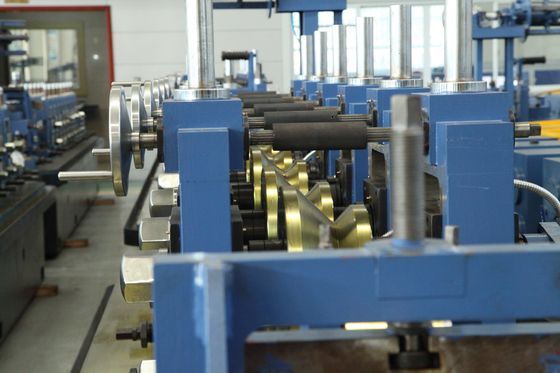

A series of forming rolls gradually converts the flat strip into a round tube profile.

The edges are heated and joined using high-frequency welding technology.

After welding, the tube passes through bead treatment and cooling.

The round tube then enters the square-forming section where it is progressively transformed into the required square or rectangular profile.

Precision sizing stands control final dimensions and corner geometry.

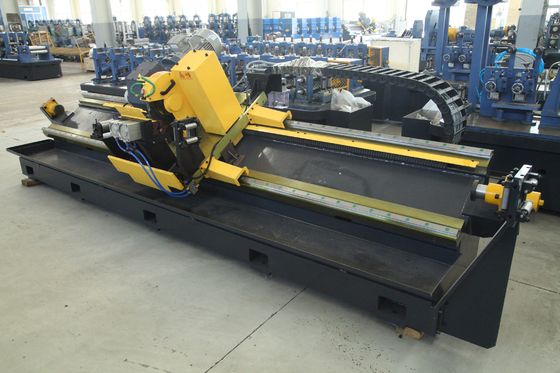

Finally, a flying saw cuts the tube to required lengths without stopping production.

Finished tubes are collected for inspection, packing, or downstream processing.

How To Choose

1. Identify the Steel Grade

Not all low alloy steels behave the same way.

Higher-strength grades require stronger mill structures and more advanced tooling design.

2. Determine Required Production Speed

Maximum speed is not always the most important factor.

Production stability, weld quality, and scrap reduction often create greater long-term value.

3. Define Tube Size Range

The minimum and maximum tube dimensions determine machine model selection and roll design.

4. Consider Structural Standards

If the tube will be used for construction or infrastructure projects, applicable standards should be defined before equipment design.

5. Evaluate Future Product Expansion

Many manufacturers eventually expand into additional tube sizes or grades.

Machine flexibility should be considered during the initial investment phase.

6. Review Automation Requirements

Automatic packing, online inspection, and quick-change systems can significantly improve production efficiency.

Company Experience and Engineering Capability

Zhongyue Metallurgy Equipment Technology specializes in welded tube mill and roll forming solutions for structural tube production.

Our engineering team works with customers to evaluate material grades, tube dimensions, production targets, and downstream processing requirements before finalizing machine design.

Rather than supplying a standard machine configuration, we focus on developing production solutions aligned with actual manufacturing objectives.

Supporting Content Strategy

Technical Article

How High-Strength Low Alloy Steel Affects Square Tube Forming and Welding

Industry Analysis

Why Construction Projects Are Increasingly Using High-Strength Structural Tubes

Customer Case Study

100 m/min Low Alloy Square Tube Production Line for Structural Steel Manufacturing

These supporting content assets help answer related buyer questions and improve topical authority.

FAQ

1. Can low alloy steel be processed on a standard carbon steel tube mill?

In some cases yes, but higher-strength materials often require stronger mill structures, optimized tooling, and more precise welding control.

2. Does 100 m/min speed apply to all tube sizes?

No.

Actual production speed depends on tube dimensions, wall thickness, steel grade, and quality requirements.

3. What is the main advantage of low alloy square tube?

Low alloy steel provides higher strength and better structural performance compared with ordinary carbon steel.

4. How can corner cracking be reduced?

Proper roll pass design, controlled deformation, and appropriate material selection help reduce corner stress and improve forming quality.

5. What information is required for quotation?

Customers should provide tube size range, wall thickness, steel grade, annual production target, product application, and workshop layout.

Conclusion

The Low Alloy Tube Forming Machine for Square Tube Production up to 100 m/min is designed for manufacturers seeking higher-value structural tube markets.

Its purpose is not only to produce square tubes but to help factories process higher-strength materials efficiently, maintain weld integrity, control dimensional accuracy, and achieve sustainable production performance.

The right equipment should solve real manufacturing problems and support long-term business growth, not simply deliver higher speed on paper.
