|Type Of Welding:||High Frequency Welding||Application:||API Pipe, BS Standard Pipe|
|Type Of Forming:||Forming By Rollers||Feature:||Stable, Precison, Safty|
|Special Requirement:||Can Be Design As Per Customer Requirement||Power Supply:||380v,50HZ, 3 Phase|
rolling mill machine,
steel pipe mills

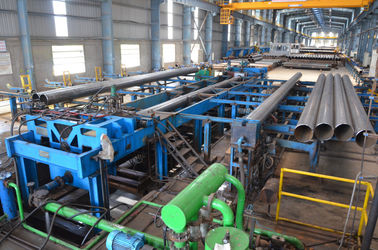

ZY-660 Tube mill for API standard pipe, BS water pipes. etc
General instruction of Product
Raw Material information:
|1||Mateairal applcaition||Hot or cold rolled steel strips, galvanzied steel strips|
|2||Material grade||Low-carbon steel, low alloy steelδs≤345Mpa, δb≤610Mpa|
|3||ID of the steel strips||Φ450-Φ508mm|
|4||OD of the steel strips||Φ800-Φ2100mm|
Finish Product information:
|1||OD of the tube||273mm-660mm|
|2||Wall thickness range||4.0mm-19.1mm|
Tube production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only tube mill manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.
Brief of tube mill application:
Tube mill as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.
Tube mill production process:
According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.

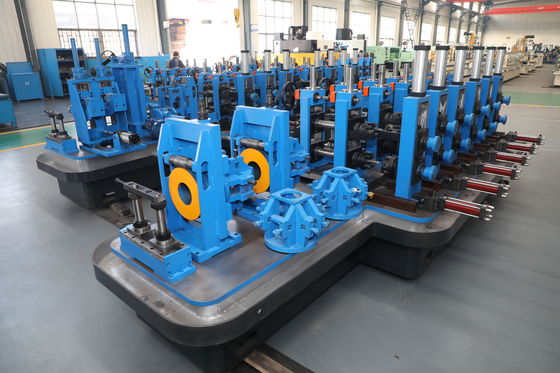

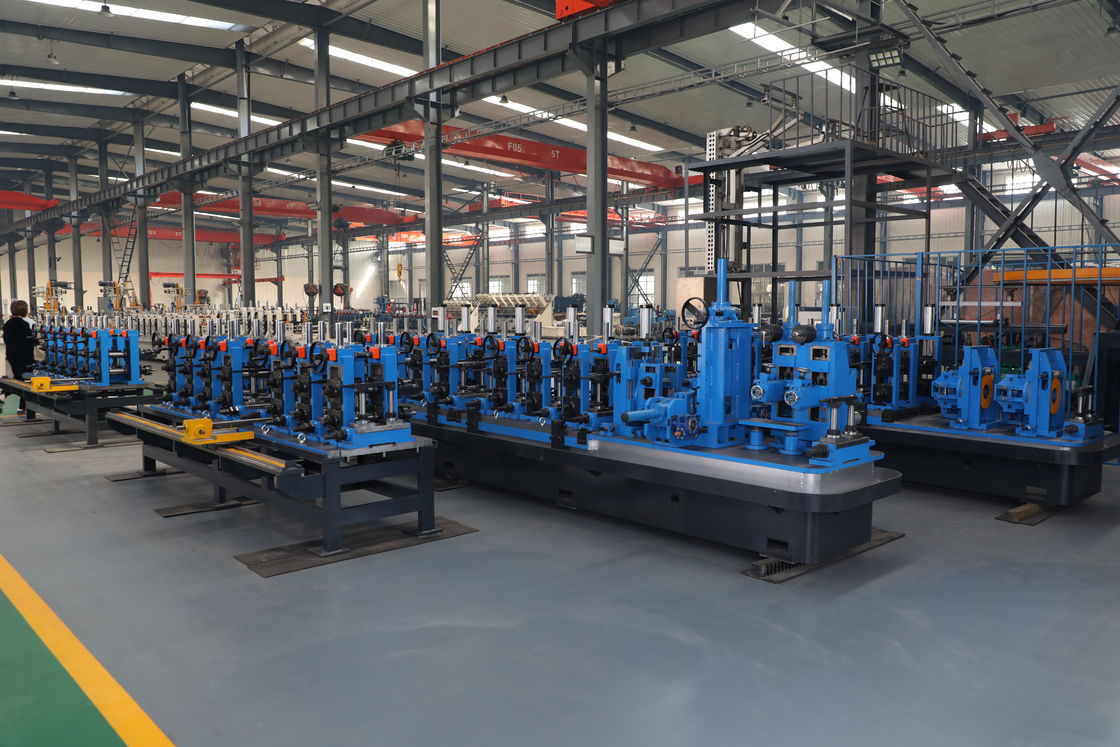

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table
for API standard we can equiped online testing equipments, like Hydro testing equipment, End facing equipment, UT testing, ECT testing etc.
Standard machine specification (reference)
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.
|Tube Mill Specification|
|Mill Model||OD range (mm)||Thickness range(mm)||Line Speed(m/min)|
At the beginning, we are manufacturing and selling the tube mills at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the tube mill has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.
