Alloy Steel Pipe Welding Machine with Accumulator and Run Out Table for Continuous Industrial Pipe Production

Product Overview

The Alloy Steel Pipe Welding Machine with Accumulator and Run Out Table is designed for continuous production of welded alloy steel pipes used in industrial structures, machinery manufacturing, fluid transportation, construction, and equipment fabrication.

Unlike a simple pipe forming machine, this line is a complete welded pipe production solution. It combines uncoiling, strip joining, material storage, forming, high-frequency welding, sizing, cutting, and pipe discharge into one continuous process.

The accumulator helps reduce production stops during coil change. The run out table supports finished pipe discharge, cooling, inspection, and collection after cutting. For customers who need stable output, better pipe consistency, and lower downtime, this configuration is more suitable than a basic welding machine without material buffering.

Zhangjiagang Zhongyue Metallurgy Equipment Technology Co., Ltd provides welded pipe production lines based on pipe size, wall thickness, material grade, speed requirement, factory layout, and downstream processing needs.

Cause

Many buyers search for an alloy steel pipe welding machine because their current production line cannot maintain stable output or pipe quality.

The common problems are not only related to the welding unit. In many factories, production loss comes from frequent coil change, unstable strip feeding, poor forming accuracy, weak weld seam control, inaccurate cutting length, or inefficient finished pipe handling.

Alloy steel pipes usually require stronger forming stability than ordinary low-carbon steel pipes. If the forming section, welding section, sizing section, and discharge system are not matched correctly, defects may appear, such as weld seam instability, pipe ovality, surface scratches, poor straightness, and irregular cutting length.

Another common issue is production interruption. Without an accumulator, the whole line may need to slow down or stop when the operator changes coils. This reduces daily output and increases labor cost.

Therefore, choosing a pipe welding machine is not only about buying one machine. It is about matching the full production process to the material, pipe specification, production speed, and final application.

Solution

This alloy steel pipe welding machine solves the above problems through a continuous production layout with accumulator and run out table.

The accumulator stores strip material before forming and welding. During coil change or strip welding, the accumulator provides temporary material supply to the main pipe mill. This allows the forming and welding section to continue running more smoothly and reduces production downtime.

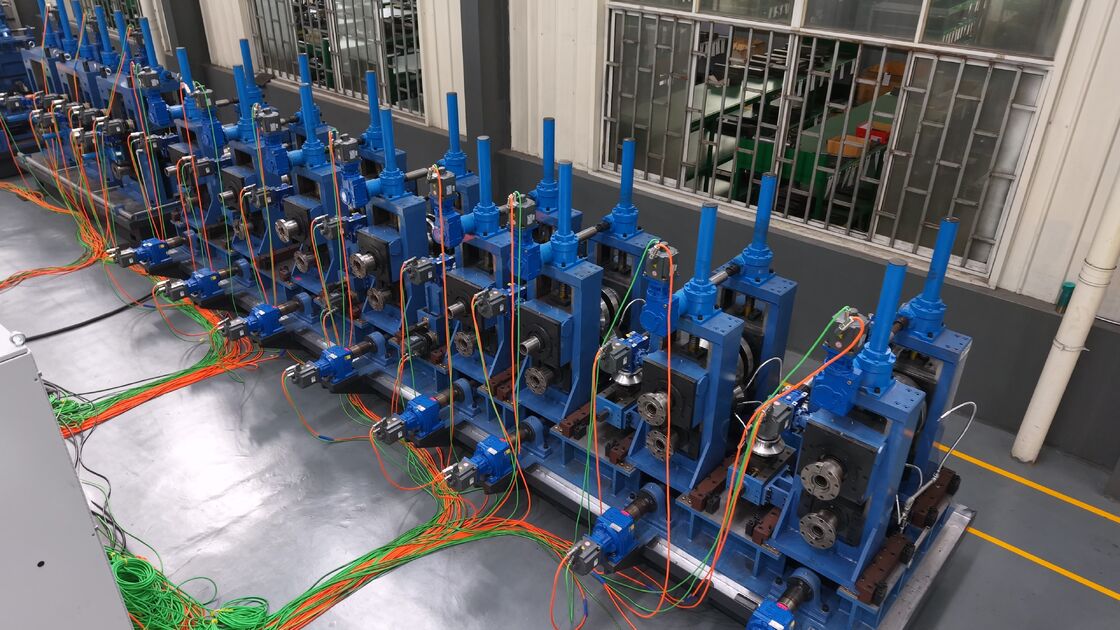

The forming section gradually bends the alloy steel strip into a round pipe shape through precision rollers. Stable forming is important because it directly affects weld seam position and pipe geometry.

The high-frequency welding section heats the strip edges and joins them into a welded pipe. After welding, the pipe enters the sizing section, where rollers correct the pipe diameter, roundness, and dimensional accuracy.

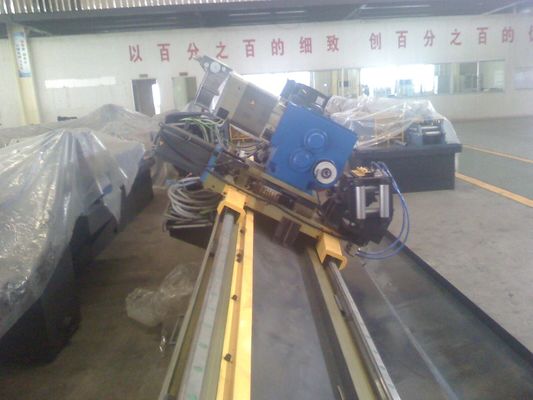

The flying saw or cold saw cuts the pipe into required lengths without stopping the whole line. After cutting, the run out table receives and transfers the finished pipes for inspection, collection, or further processing.

For customers producing alloy steel pipes for industrial applications, this system improves production continuity, pipe consistency, and workshop efficiency.

Specifications

The final technical parameters should be confirmed according to the customer’s pipe diameter range, wall thickness range, steel grade, required output, and factory layout.

Application

This alloy steel pipe welding machine is suitable for factories that need continuous welded pipe production with stable forming and welding quality.

In construction and structural steel applications, the machine can produce pipes used for frames, supports, columns, fences, and general steel structures.

In machinery manufacturing, alloy steel welded pipes can be used for equipment frames, mechanical components, conveyor systems, and industrial fabrication.

In fluid and engineering pipe applications, the line can produce welded pipes for non-critical transportation, industrial systems, and processing facilities, depending on the customer’s material standard and inspection requirements.

For steel service centers and pipe manufacturers, the accumulator and run out table are especially useful because they improve production continuity and reduce manual handling pressure after cutting.

This machine is also suitable for customers planning to upgrade from low-speed manual handling production to a more stable and continuous welded pipe production line.

How It Works

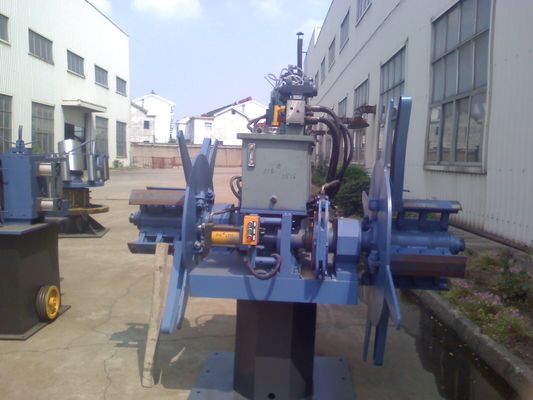

The production process starts with steel coil loading. The uncoiler releases the strip and sends it into the shear and welding section. When one coil is nearly finished, the tail of the old coil and the head of the new coil are joined.

After strip joining, the material enters the accumulator. The accumulator stores enough strip to keep the main forming and welding section running while the operator completes coil change preparation.

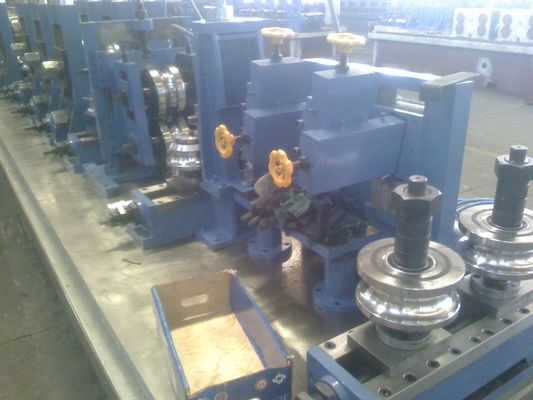

Next, the strip enters the forming section. A series of forming rollers gradually shapes the flat strip into an open pipe shape. Accurate forming keeps the strip edges aligned before welding.

The pipe then passes through the high-frequency welding unit. The strip edges are heated and pressed together to form a continuous weld seam. After welding, scarfing or bead removing can be used depending on the pipe requirement.

The sizing section corrects the pipe dimension and improves roundness or shape accuracy. After sizing, the pipe is cut into fixed lengths by a flying saw or cold saw.

Finally, the finished pipes move onto the run out table. Operators can inspect, collect, bundle, or transfer the pipes to downstream equipment.

How To Choose

When choosing an alloy steel pipe welding machine, the first factor is pipe size range. The machine model must match the minimum and maximum pipe diameter or square pipe size required by your market.

The second factor is wall thickness. Thicker alloy steel pipe requires stronger forming stands, higher welding capacity, and more stable sizing design.

The third factor is material grade. Alloy steel has different strength and forming behavior compared with ordinary carbon steel. The roller design, motor power, forming structure, and welding capacity should be selected according to the actual steel strip.

The fourth factor is production speed. A higher speed line can increase output, but only when the accumulator, welding system, cutting system, and run out table are matched correctly.

The fifth factor is downstream process. If the customer needs straightening, hydro testing, end facing, ultrasonic testing, eddy current testing, marking, painting, or automatic packing, these should be planned at the beginning of the project.

The sixth factor is factory layout. The machine length, coil storage area, operator space, pipe discharge direction, and crane capacity all affect the final line design.

For customers who need long-term stable production, it is better to choose a complete production solution instead of selecting each machine separately. A matched line reduces installation risk, improves production efficiency, and makes future maintenance easier.

FAQ

1. What is the function of the accumulator in an alloy steel pipe welding machine?

The accumulator stores steel strip before the forming section. When the operator changes coils or joins strips, the accumulator continues to supply material to the main pipe mill. This reduces line stoppage and improves daily production efficiency.

2. Why is a run out table important after pipe cutting?

The run out table receives finished pipes after cutting. It helps transfer, cool, inspect, and collect pipes in an orderly way. Without a suitable run out table, finished pipe handling may become slow, unsafe, or inefficient.

3. Can this machine produce both carbon steel and alloy steel pipes?

Yes, the machine can be designed for carbon steel, low-alloy steel, and alloy steel strip. However, the final design depends on the steel grade, pipe size, wall thickness, welding requirement, and production speed.

4. How do I know which model is suitable for my factory?

You need to confirm the pipe diameter range, wall thickness range, material grade, annual capacity, required speed, cutting length, and factory layout. Based on these details, the supplier can recommend the forming structure, welding system, accumulator type, cutting system, and run out table design.

5. Can the line be customized with inspection and finishing equipment?

Yes. Optional equipment can include straightening machine, hydro tester, eddy current testing, ultrasonic testing, end facing machine, marking machine, painting system, weighing system, and packing system. These options should be selected according to the final pipe application and customer quality standard.

Conclusion

The Alloy Steel Pipe Welding Machine with Accumulator and Run Out Table is not just a welding machine. It is a complete production solution for factories that need continuous pipe manufacturing, stable weld quality, accurate sizing, and efficient finished pipe handling.

For buyers comparing different pipe mill solutions, the key is to evaluate the complete process: material feeding, strip storage, forming accuracy, welding stability, cutting quality, and pipe discharge efficiency. A well-matched production line can reduce downtime, improve output, and support long-term industrial pipe production.
