|Type Of Welding:||High Frequency Welding||Application:||API Pipe, Water Pipe, Gas Pipe|
|Type Of Forming:||Forming By Rollers||Origin:||Zhangjiagang City, China|
|Special Requirement:||Can Be Design As Per Customer Requirement|
roll forming machine,
Tube Making Machine
88.9- 219.1MM Tube Forming Machine for Furniture Tube Making
Metal Tube production need qualified machine and experienced technology connect together to produce the profiles, that means the machine and experience are both important, our company are only tube making machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.

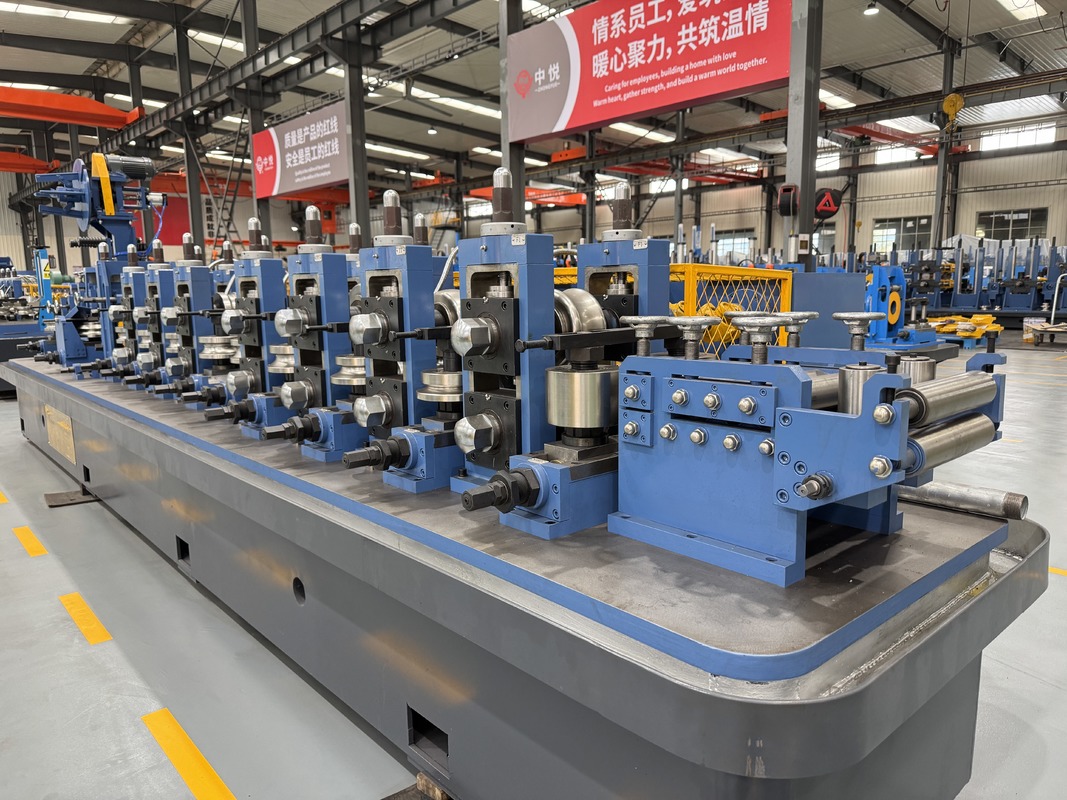

Tube forming machine as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.
Tube forming machine production process:
Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table
According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.
Tube forming machine specification
1. pipe O.D(round):88.9mm-219.1mm
2. Wall thickness:2.0mm-8.0mm
Basic necessaries for the Buyer:
|Steel strips||material||Low-carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa|
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference
only, the production range and main technical can be adjustable suppose your company have special requirement.
|Tube forming machine Specification|
|Mill Model||OD range (mm)||Thickness range(mm)||Line Speed(m/min)|
