ASTM A53 Steel Tube Making Machine Hot Rolled Steel 2.0 mm - 6.0 mm Uncoiler

ASTM A53 Steel Tube Making Machine Hot Rolled Steel 2.0 mm - 6.0 mm Uncoiler

  • High Light

    ss pipe making machine


    Tube Forming Machine

  • Material Of Stand
    Forged Steel
  • Material Of Roller
    D3 Or D2
  • Power Supply
    380v, 50HZ,3phase
  • Type Of Roller Change
    Top Lift
  • Forming Design
    W Forming
  • Place of Origin
    Zhang jia gang
  • Brand Name
  • Certification
    CE, ISO
  • Model Number
    6 inch , ZY165
  • Minimum Order Quantity
    1 Set
  • Price
  • Packaging Details
    Packed in seaworthy material and fix properly in container loading
  • Delivery Time
    3 month
  • Payment Terms
    T/T advance,Balance by L/C
  • Supply Ability
    150 set per year

ASTM A53 Steel Tube Making Machine Hot Rolled Steel 2.0 mm - 6.0 mm Uncoiler

6 Inch API 5CT standard tube, ASTM A 53 Steel tube making machine

1: Main Technical Parameters of ZY165 Tube Making machine

Raw material  hot rolled steel, galvanized steel
Round tube outer diameter 76.2mm-165m
Wall thickness Round tube 2.0mm-6.0mm
Tube welding speed 60m/min


2: Basic Production flow


Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table→


The above production flow is based on the standard, according to different standard of the pipe, it may add hydro testing machine, end facing machine, ECT testing equipment etc.



3: Market distribution


At the beginning, we are manufacturing and selling the Steel Pipe Making Machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Making Machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.


4:  Technical Advantage


Pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Making Machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.


5: Tube Making Machine specification


Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Steel Pipe Making Machine Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16 7.6-16 0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22

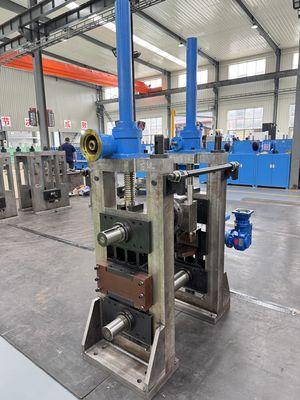

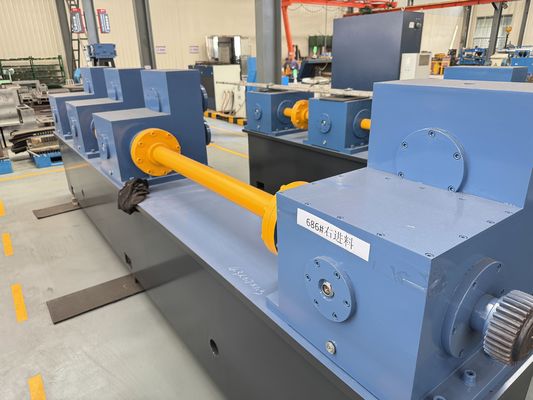

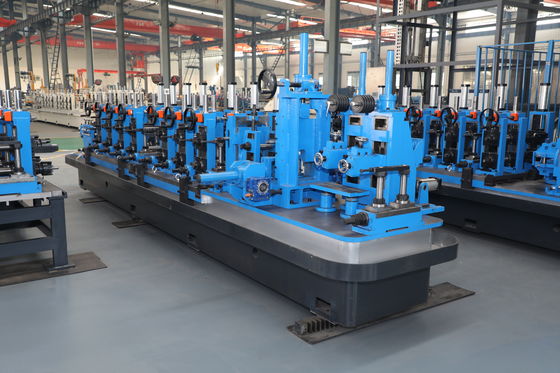

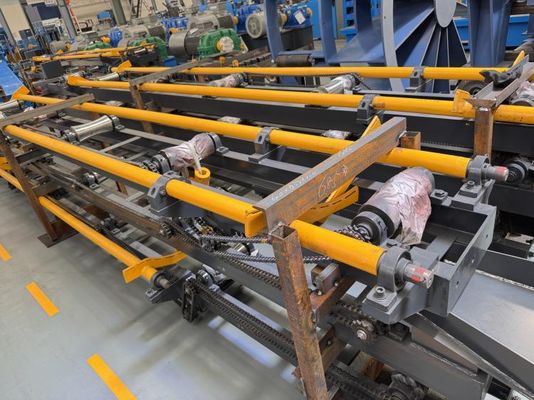

6: Picture reference


ASTM A53 Steel Tube Making Machine Hot Rolled Steel 2.0 mm - 6.0 mm Uncoiler 0
