Payment & Shipping Terms:
|Type Of Welding:||High Frequency Welding||Application:||API Standard Pipe, Oil Pipe, Gas Pipe|
|Type Of Forming:||Forming By Rollers||Feature:||High Speed. High Precision|
|Special Requirement:||Can Be Design As Per Customer Requirement|
stainless steel pipe making Machine,
Pipe Milling Machine
1. Finish Product information:
|1||OD of the tube||88.9mm-325mm|
|2||Wall thickness range||2.0mm-12.7mm|
2. Steel Pipe Making Machine production process:
pipe weled machine The high frequency straight seam Square steel tube making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency Square steel tube making machine is also called ERW pipe mill.

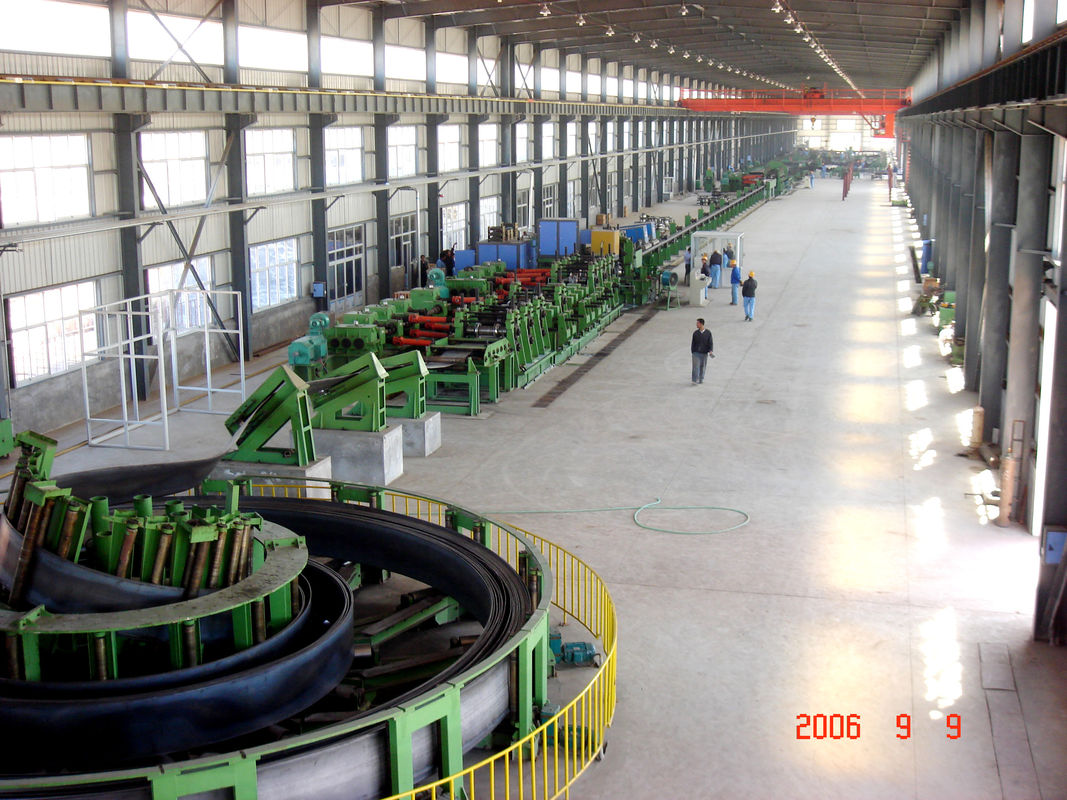

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table
3. Brief of Steel Pipe Making Machine application:
Steel Pipe Making Machine as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.
Pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Making Machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.
5. Market distribution:
At the beginning, we are manufacturing and selling the Steel Pipe Making Machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Making Machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.
6. Steel Pipe Making Machine specification
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.
|Steel Pipe Making Machine Specification|
|Mill Model||OD range (mm)||Thickness range(mm)||Line Speed(m/min)|
