ZY-219 API line pipe, casing pipe, ASTM A 53 steel pipe milling machine

 Applicable material

(1)cold-rolled steel strip

(2)Material: Low-carbon steel, low alloy steelδs≤345Mpa,δb≤610Mpa

(3)The thickness of steel strip: 2.0-8.0mm

(4)The width of steel strip: 280-690m

(5)I.D. of steel coil: Φ450-Φ610mm

(6)O.D. of steel coil: Φ800-Φ2100mm

(7)Maximum weight coil: 12000kgs

 Dimension range of processing steel pipe

(1) O.D.: Φ88.9-Φ219mm

(2)Wall thickness: 2.0mm-8.0mm

(3)Length: 4-12M

Product Overview

The ASTM A53 ERW Steel Pipe Mill Equipment 120M/Min is designed for continuous production of high-frequency welded steel pipes used in fluid transport, mechanical structures, construction, fire protection systems, and general industrial piping.

This production line is suitable for carbon steel, black steel, hot-dipped galvanized steel, cold-rolled steel, and hot-rolled steel strip. It is especially suitable for manufacturers who need stable pipe forming, reliable weld seam quality, and high-speed production for ASTM A53-related pipe markets.

For professional accuracy, ASTM A53 is mainly used for black and hot-dipped galvanized steel pipe, not typical stainless steel pipe. If the customer’s target product is stainless steel pipe, the machine configuration and applicable standard should be checked separately, such as ASTM A312 for austenitic stainless steel pipe.

Problem

Many pipe manufacturers want to enter ASTM-related markets but face unstable pipe quality during high-speed production.

Common problems include poor weld seam strength, unstable outside diameter, excessive burrs, inaccurate cutting length, low production speed, and high scrap rate during coil change or size change.

When the production speed reaches 120M/Min, small problems in strip feeding, forming angle, welding heat, squeeze pressure, cooling, and sizing can quickly become large quality risks.

Clear Answer

A qualified ASTM A53 pipe mill should not only produce round pipe at high speed. It must control strip preparation, forming stability, ERW welding quality, sizing accuracy, cutting precision, and inspection compatibility throughout the whole production process.

Cause

ASTM A53-related pipe production requires stable material forming and reliable longitudinal weld quality.

If the forming rolls are not designed correctly, the strip edges may not meet evenly before welding. This can cause unstable weld seam bonding, inner burr problems, and pipe deformation after cooling.

High-frequency welding also requires accurate control of welding power, speed, V-angle, squeeze force, and cooling condition. When any of these factors are not matched, the pipe may pass visual inspection but fail in pressure, bending, threading, grooving, or downstream installation.

For high-speed production, coil handling is also critical. Without a stable accumulator system, the forming and welding section may stop during coil change. This increases restart waste and reduces real production efficiency.

Another common issue is selecting equipment only by maximum speed. A 120M/Min pipe mill is meaningful only when the pipe size, wall thickness, material grade, welding power, and cutting system are correctly matched.

Solution

This ASTM A53 ERW Steel Pipe Mill Equipment provides a complete welded pipe production solution from steel coil to finished pipe.

The complete line normally includes uncoiler, shear and end welder, strip accumulator, forming mill, high-frequency welding system, weld bead removal unit, cooling section, sizing mill, straightening unit, flying saw or cold saw, run-out table, and optional inspection equipment.

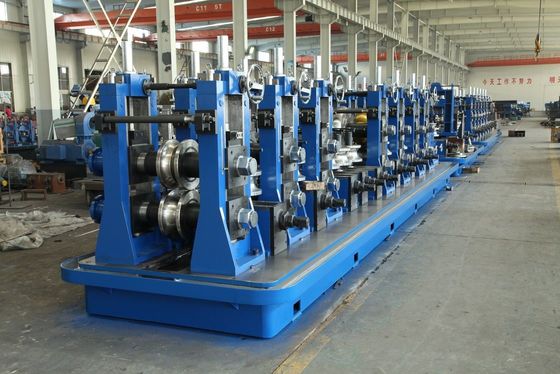

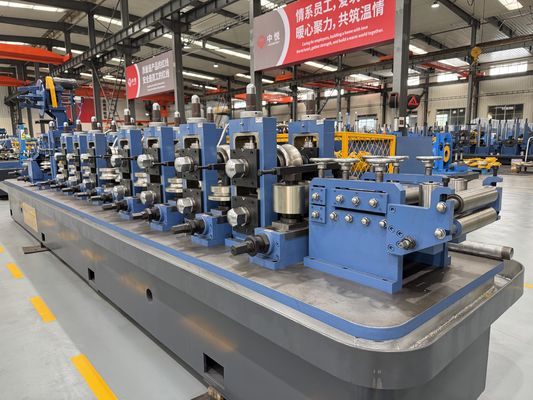

The forming section gradually bends the steel strip into a round pipe shape through multiple roll stands. A stable forming process ensures that both strip edges enter the welding point with correct alignment.

The high-frequency welding unit heats the strip edges and completes longitudinal seam welding through squeeze rolls. This process is widely used for ERW steel pipe production because it supports continuous production, high efficiency, and stable weld quality.

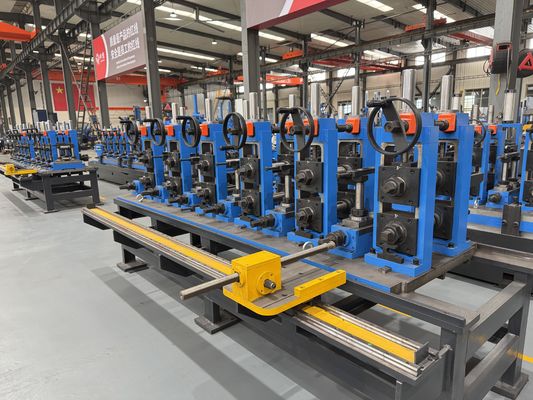

The sizing section controls the final outside diameter, roundness, and straightness of the finished pipe. For ASTM A53-related applications, this section is important because dimensional consistency affects threading, grooving, coupling, installation, and pressure performance.

For customers targeting higher quality markets, the production line can be equipped with online eddy current testing, ultrasonic testing, hydrostatic testing, end facing, automatic marking, bundling, and packing systems.

Zhongyue Metallurgy Equipment Technology can design the pipe mill according to the customer’s pipe size range, wall thickness, steel grade, annual output, workshop layout, power supply, and target market requirements.

Specifications

The following parameters are reference specifications for ASTM A53 ERW Steel Pipe Mill Equipment. Final configuration should be confirmed according to pipe size, wall thickness, steel grade, production standard, and required output.

Application

This pipe mill equipment is suitable for factories producing welded steel pipes for fluid transport, mechanical structures, and general industrial use.

Water, Gas, Steam, and Air Lines

ASTM A53-related pipes are widely used in ordinary fluid transfer applications such as water, gas, steam, and air lines.

For these applications, weld seam stability, pipe roundness, and dimensional control are essential for safe connection and reliable installation.

Fire Protection and Building Services

ERW steel pipes are commonly used in fire protection systems, sprinkler pipelines, building service pipelines, and public facility projects.

These markets often require stable pipe diameter, clean cutting ends, and compatibility with threading or grooving.

Mechanical and Structural Applications

The pipe mill can also produce steel pipes for mechanical frames, equipment supports, guardrails, scaffolding parts, and general structural uses.

For these applications, straightness and weld seam consistency help improve downstream fabrication efficiency.

Galvanized Pipe Production

When combined with suitable raw material and downstream processing, the line can support galvanized pipe production for corrosion-resistant applications.

Galvanized steel pipes are widely used in construction, agricultural facilities, fences, and outdoor pipe systems.

How It Works

The production process starts with steel coil loading. The uncoiler holds and feeds the steel strip into the production line.

The shear and end welder connects the tail of one coil with the head of the next coil. This reduces downtime and keeps production more continuous.

The accumulator stores strip material so the forming and welding section can continue running during coil change. This is especially important for high-speed production lines.

The forming mill gradually shapes the flat strip into a round pipe. Correct roll pass design ensures stable edge alignment before welding.

The high-frequency welding system heats the strip edges rapidly. The squeeze rolls press the heated edges together to form a strong longitudinal weld seam.

After welding, the outer bead is removed, and the pipe passes through cooling and sizing sections. The sizing mill controls final diameter, roundness, and straightness.

Finally, the pipe is cut into fixed lengths by flying saw or cold saw. The finished pipe moves to the run-out table for inspection, collection, bundling, or further processing.

How To Choose

1. Confirm the Real Pipe Standard

Before selecting the machine, confirm whether the final product is ASTM A53 carbon steel pipe, galvanized steel pipe, or stainless steel pipe.

If the target product is stainless steel pipe, ASTM A53 may not be the correct standard. The customer should confirm whether ASTM A312 or another stainless steel standard is required.

2. Confirm Pipe Diameter and Wall Thickness

Pipe diameter and wall thickness decide the mill model, forming stand strength, motor power, welding power, cutting system, and production speed.

A machine designed for small thin-wall pipe cannot be used directly for larger thick-wall pipe production.

3. Match Speed With Product Range

The 120M/Min speed is achievable under suitable conditions, usually for smaller diameter and thinner wall pipes.

For larger diameter or thicker wall pipes, the practical production speed may be lower because forming force, welding heat input, cooling time, and cutting stability must be controlled.

4. Select the Right Welding Power

High-frequency welding power must match pipe size, wall thickness, material grade, and line speed.

Insufficient welding power may cause weak weld bonding. Excessive welding power may cause overheating, large burrs, and unstable seam quality.

5. Choose the Correct Cutting System

Flying saw is suitable for continuous high-speed production and general pipe cutting.

Cold saw is recommended when the customer requires better cutting surface, less burr, higher cutting accuracy, and improved downstream threading or grooving performance.

6. Plan Inspection and Testing Equipment

If the pipe is used for pressure-related or export applications, optional inspection systems should be considered.

Common options include eddy current testing, ultrasonic testing, hydrostatic testing, end inspection, marking, and automatic bundling.

FAQ

1. Is ASTM A53 a stainless steel pipe standard?

No. ASTM A53 is mainly used for seamless and welded black or hot-dipped galvanized steel pipe.

If the customer wants to produce stainless steel pipe, the applicable standard should be confirmed separately, such as ASTM A312 for austenitic stainless steel pipe.

2. Can this machine produce ASTM A53 welded pipe?

Yes. The machine can be configured for ASTM A53-related ERW welded pipe production.

Final compliance depends on raw material, pipe size, wall thickness, welding quality, dimensional tolerance, inspection process, and testing requirements.

3. Can the line really reach 120M/Min?

Yes, 120M/Min can be achieved under suitable pipe size, wall thickness, steel grade, and cutting conditions.

For larger diameter or thicker wall pipe, the practical speed should be adjusted to ensure weld quality and dimensional stability.

4. What information is needed before quotation?

The main information includes pipe diameter range, wall thickness range, steel grade, pipe standard, production speed, annual capacity, power supply, workshop layout, cutting length, and inspection requirements.

Finished pipe drawings or target market standards will help make the quotation more accurate.

5. Can the machine be customized?

Yes. The machine can be customized according to pipe size, material, wall thickness, line speed, welding power, automation level, cutting method, inspection equipment, and workshop layout.

Zhongyue Metallurgy Equipment Technology can provide technical configuration, layout design, production line planning, installation guidance, and after-sales support for export pipe mill projects.
