Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making

Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making
Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making
Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making

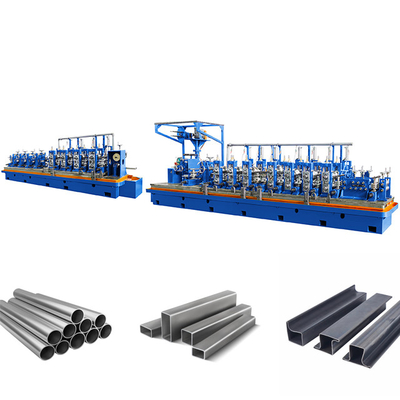

Large Image :  Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making

Product Details:
Place of Origin: Zhang jia gang
Brand Name: ZHONG YUE
Certification: CE/ISO
Model Number: ZY16-ZY660
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation according to different machine
Packaging Details: Packed in seaworthy material and fix properly in container loading
Delivery Time: 3 month to 6 month
Payment Terms: T/T+L/C
Supply Ability: 150 Set per Year

Three Phase Petroleum Tube Mill Machine Stainless Steel Rectangular Pipe Making

Description
Type Of Welding: High Frequency Welding Application: Steel Profile, Square Pipe, Rectangular Pipe
Type Of Forming: Forming By Rollers Feature: Stable, Precison, Safty
Special Requirement: Can Be Design As Per Customer Requirement Power Supply: 380v,50HZ, 3 Phase
Highlight:

petroleum tube mill machine

,

three phase ss tube mill machine

,

stainless steel rectangular pipe mill machine

Stainless Steel Pipe Making Machine Ss Tube Mill


Stainless steel tube mill mainly useds for the production of industrial stainless steel tube,be widely used in many areas, such as:chemical engineering, medicine, winery, petroleum, food, automobile, paper-making industry, air conditioning and so on.The tube mill is newly designed based on practical producing and acquiring the advantages of equipment home and abroad,which is also convenient in operation and maintenance.




Part 1:Un-Coiler
Two options
Manual expansion mandrel
Each side loaded capacity: ≤5T

Part 2:Forming Section
Feeding equipment: 2 roller guide apparatus 3 break down+3 by-pass+3 fin pass
Horizontal Shaft.: 40mm
Vertical Shaft : 25mm
Arrangement: 3-3-1-4 or 4-4-1-4 or customized
Horizontal Stand:
Needle Bearings in operation side Horizontal Stand,it is easy to change and adjust roll sets, will take roughly 40 minutes to change full set roll sets

Part 3:Welding Section
Welding tracking system
The welding automatic correction
The welding arc voltage automatic control
Tungsten needle ablation alarm
Tungsten Intelligent alarm inform replacement function

Raw Material information:


1 Mateairal applcaition Hot or cold rolled steel strips, galvanzied steel strips
2 Material grade Low-carbon steel, low alloy steelδs≤345Mpa, δb≤610Mpa
3 ID of the steel strips Φ450-Φ508mm
4 OD of the steel strips Φ800-Φ1600mm
5 Coiler weight 6000kg








Finish Product information:

1 OD of the tube 76.2mm-168mm
2 Wall thickness range 2.0mm-6.0mm
3 Tube length 4m-12m
4 Line speed 50m/min









Company Advantage

Tube production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only tube mill manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.

Brief of tube mill application:
Tube mill as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.



Tube mill production process:
According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table

Standard machine specification (reference)
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Tube Mill Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16 7.6-16 0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22 40




Market distribution:
At the beginning, we are manufacturing and selling the tube mills at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the tube mill has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.
