Product Details:
|
| Type Of Welding: | High Frequency Welding | Application: | Construction,furniture, Oil And Gas Transportation |
|---|---|---|---|
| Type Of Forming: | Forming By Rollers | Feature: | High Speed, High Precision |
| Special Requirement: | Can Be Design As Per Customer Requirement | Name: | Steel HF Welding Tube Forming Machine |
| Highlight: | hf welding steel tube forming machine,id 350mm tube forming machine,id 350mm pipe forming machine |
||

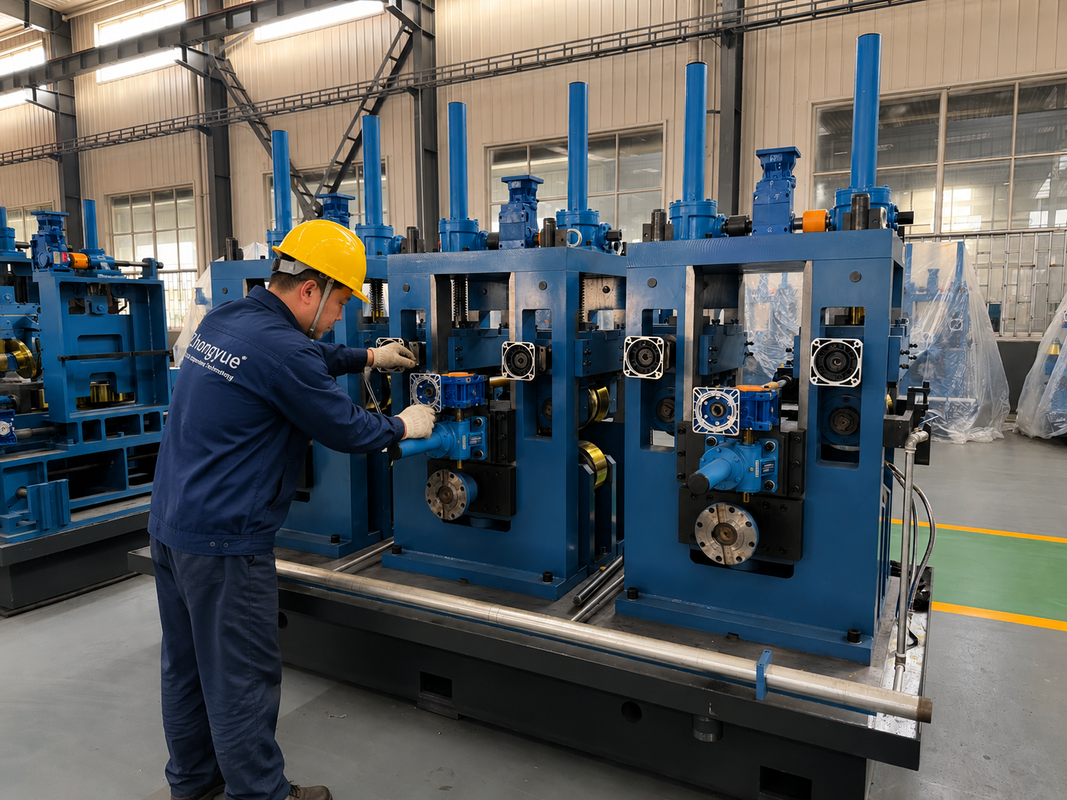

Steel Pipe Machine Tube Mill Pipe Forming Machine Pipe Rolling Machinery
Durable and non-deformed machine base
Use thick steel to weld together as a whole to tempering more than 4 hours twice to make sure that the machine can be used in long term without deformation.
Stable transmission system
Spiral bevel gear, drum gear coupling and carburization and quenching for gear teeth makes the driving system stable, efficient and wearable, with higher loading capacity and lower noise
Long bearing life
Equipped with greasing nozzles for the bearing lubrication, the bearing life is largely improved.
Basic necessaries for the BuyerL:
| Steel strips | material | Low carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa |
| I.D | Φ350~Φ450mm | |
| O.D | Φ600~1000mm | |
| Width | 350~1275mm | |
| Thickness | 4.0-16mm | |
| Maximum.weight | ≤25000KGS |
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference
only, the production range and main technical can be adjustable suppose your company have special requirement.
| Tube forming machine Specification | |||
| Mill Model | OD range (mm) | Thickness range(mm) | Line Speed(m/min) |
| ZY-16 |
7.6-16 |
0.3-1.0 | 120 |
| ZY-20 | 10-25.4 | 0.3-1.5 | 120 |
| ZY-32 | 12.7-38.1 | 0.6-1.8 | 120 |
| ZY-45 | 16-50.8 | 0.7-2.0 | 110 |
| ZY-50 | 20-63.5 | 0.8-3.0 | 90 |
| ZY-60 | 25.4-76.2 | 1.0-3.2 | 80 |
| ZY-76 | 31.8-88.9 | 1.2-3.75 | 80 |
| ZY-89 | 33.4-101.6 | 1.2-4.5 | 75 |
| ZY-125 | 50.8-130 | 2.0-5.0 | 60 |
| ZY-165 | 76.2-168 | 2.0-6.0 | 50 |
| ZY-219 | 88.9-219 | 2.0-8.0 | 50 |
| ZY-273 | 89-273 | 3.0-12.0 | 40 |
| ZY-325 | 89-325 | 3.0-12.7 | 40 |
| ZY-406 | 114-406 | 4.0-16.0 | 40 |
| ZY-508 | 219-508 | 4.0-19.1 | 40 |
| ZY-610 | 273-610 | 4.0-19.1 | 40 |
| ZY-660 | 273-660 | 4.0-22 | 40 |
Advantage
Tube production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only tube making machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.
Brief of tube making machine application:
Tube forming machine as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.
Tube forming machine production process:
According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.
Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table
