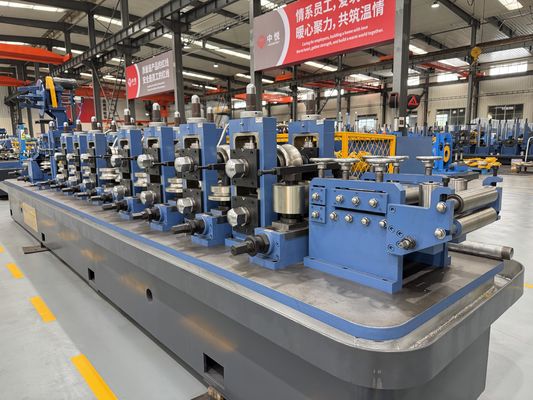

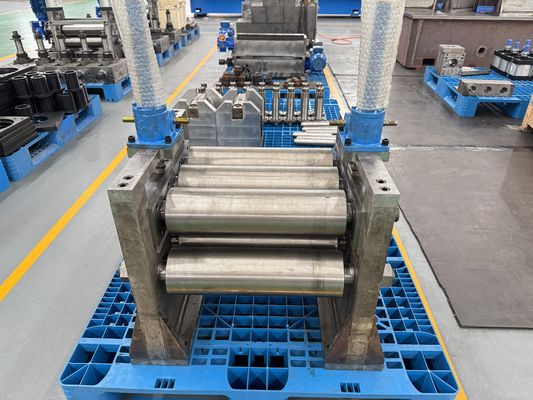

Galvanized Steel Tube Making Machine with High Frequency Welding for Construction and Industrial Pipe Production

4 Inchgalvanized steel tube, steel fence tube, auto tube making machine

Main Technical Parameters of ZY89Tube Making machine

Product Overview

The Galvanized Steel Tube Making Machine with High Frequency Welding is designed for continuous production of welded galvanized steel tubes from galvanized steel strip or carbon steel strip for later galvanizing.

This production line is suitable for construction tubes, fence tubes, greenhouse pipes, solar mounting tubes, furniture frames, light steel structures, scaffolding tubes, and general industrial pipe products.

The key value of this machine is not only making a tube shape. It helps manufacturers control forming accuracy, weld seam stability, zinc coating protection, cutting quality, and continuous production efficiency.

Problem

Many galvanized tube manufacturers face quality problems during high-speed production.

Common issues include zinc coating damage, unstable weld seams, poor tube roundness, large burrs, inaccurate cutting length, surface scratches, and high scrap rate during coil change.

For galvanized steel tube production, the challenge is different from ordinary carbon steel pipe. The zinc coating must be protected as much as possible during forming, welding, sizing, and handling.

Clear Answer

A qualified galvanized steel tube making machine should be selected according to tube size, wall thickness, zinc-coated material condition, welding power, line speed, forming method, cutting accuracy, and final application.

The right machine configuration helps protect the coating, improve weld seam quality, reduce scrap, and keep production stable.

Cause

Galvanized steel tube quality problems usually come from poor control of forming pressure, welding heat, and surface handling.

Galvanized steel has a zinc coating on the surface. During roll forming, excessive pressure or unsuitable roll design can scratch or damage the coating.

In the welding section, high-frequency welding heats the strip edges quickly. If the welding heat is too high, the zinc coating near the weld seam may burn excessively. If the heat is too low, the weld seam may not bond properly.

The strip edge condition also affects weld quality. Poor slitting, unstable feeding, or incorrect edge alignment can cause weld seam defects, burr problems, and tube deformation after sizing.

Another common cause is unstable production during coil change. Without an efficient accumulator, the forming and welding section may stop frequently, causing restart waste and unstable finished tube quality.

Solution

This galvanized steel tube making machine provides a complete welded tube production solution from steel coil to finished tube.

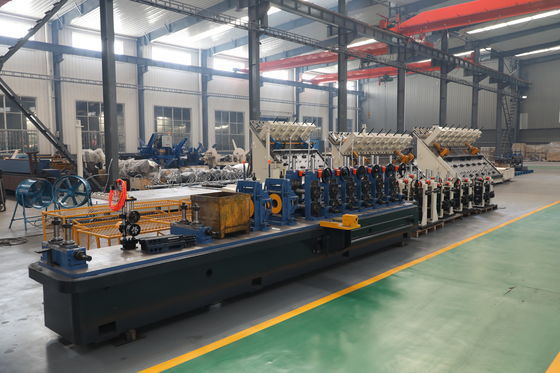

The complete line normally includes uncoiler, shear and end welder, strip accumulator, forming mill, high-frequency welding system, weld bead removal device, cooling section, sizing mill, straightening unit, flying saw or cold saw, run-out table, and optional packing system.

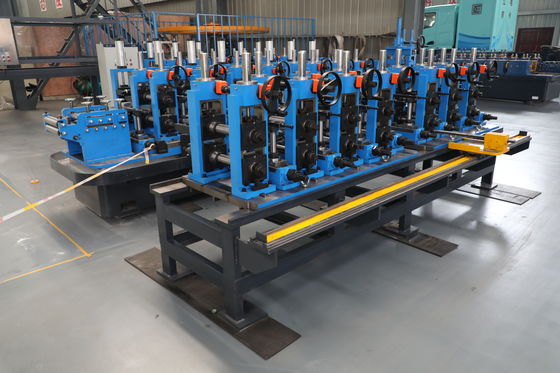

The forming section gradually shapes the galvanized steel strip into a round, square, or rectangular tube. Proper roll design helps reduce surface damage and improves tube shape stability.

The high-frequency welding system heats the strip edges and completes longitudinal seam welding through squeeze rolls. This process is suitable for continuous galvanized steel tube production because it offers high efficiency, stable welding, and good production continuity.

After welding, the tube passes through bead removal, cooling, sizing, and straightening sections. These sections control final tube dimension, roundness, straightness, and cutting quality.

For customers with higher production requirements, the line can be equipped with online inspection, automatic marking, automatic bundling, and automatic packing systems.

Zhongyue Metallurgy Equipment Technology can customize the machine according to tube drawings, material grade, zinc coating condition, wall thickness, production speed, workshop layout, power supply, and final market requirements.

Specifications

The following specifications are reference parameters. Final configuration should be confirmed according to tube size, wall thickness, material condition, line speed, and application.

Application

This galvanized steel tube making machine is suitable for factories producing corrosion-resistant welded tubes for construction, outdoor structures, furniture, agriculture, and industrial markets.

Construction and Light Steel Structures

Galvanized steel tubes are widely used in building frames, support structures, guardrails, scaffolding components, and light steel construction.

For these applications, tube straightness, weld seam quality, and dimensional consistency directly affect installation efficiency.

Fence and Guardrail Production

The machine can produce galvanized round pipes, square tubes, and rectangular tubes for fences, guardrails, road barriers, and outdoor protection structures.

These products require stable tube size, good surface condition, and reliable cutting accuracy.

Greenhouse and Agricultural Structures

Galvanized tubes are commonly used in greenhouse frames, agricultural supports, irrigation structures, and outdoor farming facilities.

The zinc coating helps improve corrosion resistance, while stable forming helps reduce assembly problems on site.

Solar Mounting Systems

Galvanized steel tubes are suitable for solar panel mounting structures, ground supports, roof supports, and related steel frames.

For solar mounting applications, tube consistency and batch production stability are important for fast installation.

Furniture and Commercial Metal Products

The machine can also produce galvanized steel tubes for table frames, chair frames, shelves, display racks, storage racks, and commercial metal products.

For these products, smooth cutting, stable tube shape, and good surface appearance help reduce downstream processing cost.

How It Works

The production process starts from galvanized steel coil loading. The uncoiler holds the coil and feeds the strip into the production line.

The shear and end welder connects the end of one coil with the head of the next coil. This helps reduce downtime during continuous production.

The strip accumulator stores enough material so the forming and welding section can keep running during coil change.

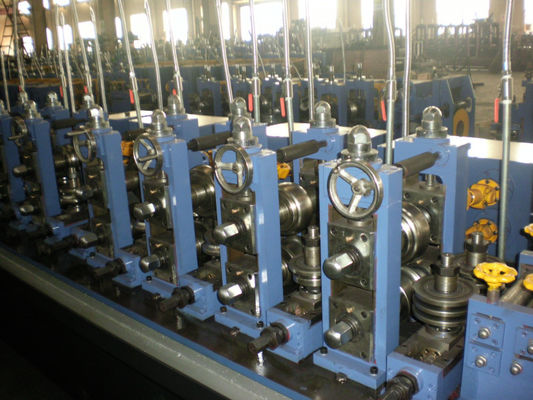

The forming mill gradually bends the flat galvanized steel strip into the required tube shape. Roll design and guide accuracy are important for reducing coating scratches.

The high-frequency welder heats the strip edges quickly. The squeeze rolls press the heated edges together to form a continuous longitudinal weld seam.

After welding, the outer bead is removed, and the tube enters the cooling and sizing sections. The sizing mill controls final tube diameter, shape, and straightness.

Finally, the flying saw or cold saw cuts the tube into fixed lengths. Finished tubes are sent to the run-out table for inspection, collection, bundling, or packing.

How To Choose

1. Confirm the Material Type

The first step is to confirm whether the factory uses pre-galvanized steel strip or produces black welded pipe for later hot-dip galvanizing.

These two production routes have different requirements for forming, welding, surface protection, and downstream handling.

2. Confirm Tube Shape and Size Range

Round pipe, square tube, and rectangular tube require different roll designs and sizing systems.

The customer should provide minimum and maximum tube size, wall thickness range, and common production specifications.

3. Match Welding Power with Wall Thickness

High-frequency welding power must match tube size, wall thickness, material grade, and production speed.

Insufficient welding power may cause weak weld bonding. Excessive welding power may increase heat damage near the zinc coating and create larger burrs.

4. Protect the Zinc Coating

For pre-galvanized steel tube production, coating protection is very important.

The machine should use suitable roll design, smooth guiding, stable forming pressure, and proper handling devices to reduce scratches and coating damage.

5. Choose the Right Cutting Method

Flying saw is suitable for continuous high-speed production and general cutting requirements.

Cold saw is recommended when the customer needs smoother cutting ends, less burr, higher length accuracy, and better downstream assembly quality.

6. Select the Right Automation Level

Factories with high output requirements should consider automatic feeding, automatic control, online inspection, automatic marking, bundling, and packing.

Higher automation can reduce manual handling, improve production stability, and lower labor cost.

7. Consider Future Product Expansion

If the factory may produce larger tubes, thicker wall products, or higher-standard export products later, the line should reserve enough capacity in forming stands, motors, welding power, and cutting system.

A good machine should solve current production needs and support future market growth.

FAQ

1. Can this machine produce galvanized steel tubes directly?

Yes. The machine can produce welded tubes from galvanized steel strip.

It can also be configured for carbon steel tube production if the customer plans to galvanize the pipe after welding.

2. Will high-frequency welding damage the zinc coating?

High-frequency welding heats the strip edges, so the coating near the weld seam may be affected.

A proper machine configuration can reduce excessive heat impact, control burr formation, and improve weld seam stability.

3. What tube shapes can the machine produce?

The machine can be configured to produce round pipes, square tubes, and rectangular tubes.

For square and rectangular tubes, customers can choose round-to-square forming or direct square forming according to product range and size-change frequency.

4. What information is needed before quotation?

The customer should provide tube shape, tube size range, wall thickness, material type, zinc coating condition, production speed, cutting length, workshop layout, power supply, and final application.

Tube drawings or sample photos can help make the technical configuration more accurate.

5. Can the machine be customized?

Yes. The machine can be customized according to galvanized steel tube size, wall thickness, material condition, production speed, welding power, cutting method, automation level, and workshop layout.

Zhongyue Metallurgy Equipment Technology can provide machine configuration, layout design, technical communication, installation guidance, and after-sales support for galvanized tube production projects.
