ASTM Standard Steel Pipe Making Machine High Speed High Frequency Welder

ASTM Standard Steel Pipe Making Machine High Speed High Frequency Welder

  • High Light

    Pipe Milling Machine

    ,

    roll forming equipment

  • Type Of Welding
    High Frequency Welding
  • Application
    ASTM Standard Pipe Making Machine
  • Type Of Forming
    Forming By Rollers
  • Feature
    High Speed. High Precision
  • Special Requirement
    Can Be Design As Per Customer Requirement
  • Place of Origin
    Zhang jia gang
  • Brand Name
    Zhong Yue
  • Certification
    CE/ISO
  • Model Number
    ZY16-ZY660
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiation according to different Model
  • Packaging Details
    Packed in seaworthy material and fix properly in container loading
  • Delivery Time
    3 month to 6 month
  • Payment Terms
    T/T+L/C
  • Supply Ability
    150 set per Year

ASTM Standard Steel Pipe Making Machine High Speed High Frequency Welder

ZY-125 ASTM standard construction &indutrial steel pipe making machine

ASTM Standard Steel Pipe Making Machine High Speed High Frequency Welder 0



1.  Finish Product information:



1 OD of the tube 50.8mm-130mm
2 Wall thickness range 2.0mm-5.0mm
3 Tube length 4m-12m
4 Line speed 80m/min













2. Steel Pipe Making Machine production process:

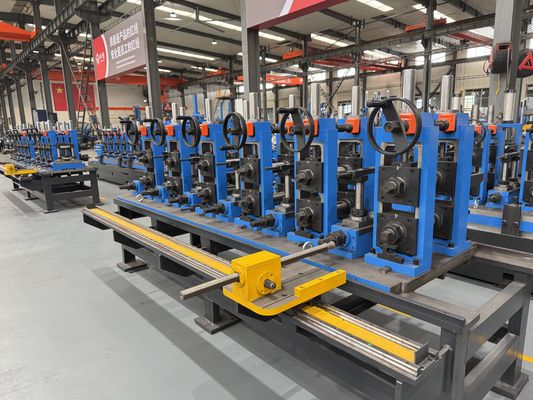

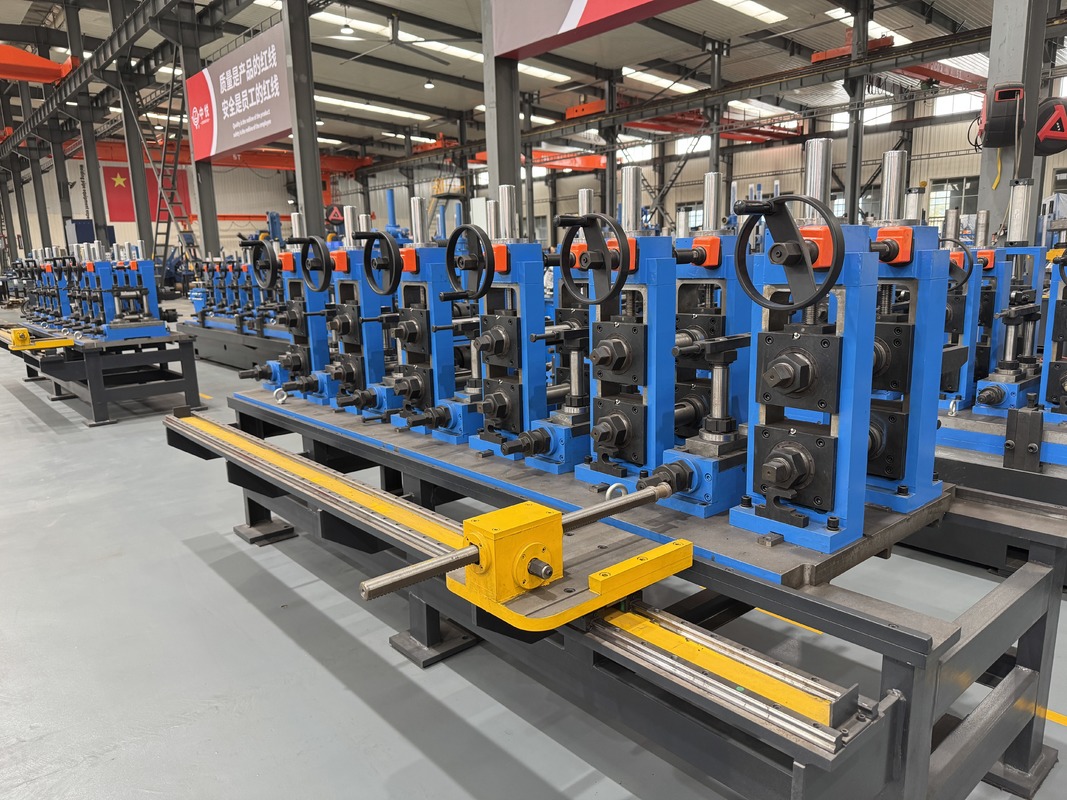

pipe weled machine The high frequency straight seam Square steel tube making machine is used to level the fixed strip after slitting line and entry it to forming machine, bend toopenippe by roller, melt the strip edges throuh te High frequency current, squeeze and weld the pipe to be closedby squeeze roll, the high frenency Square steel tube making machine is also called ERW pipe mill.



Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table



3. Brief of Steel Pipe Making Machine application:



Steel Pipe Making Machine as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.



4. Advantage:



Pipe production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Making Machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.



5. Market distribution:



At the beginning, we are manufacturing and selling the Steel Pipe Making Machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Making Machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.







6. Steel Pipe Making Machine specification



Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.

Steel Pipe Making Machine Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16 7.6-16 0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22 40
