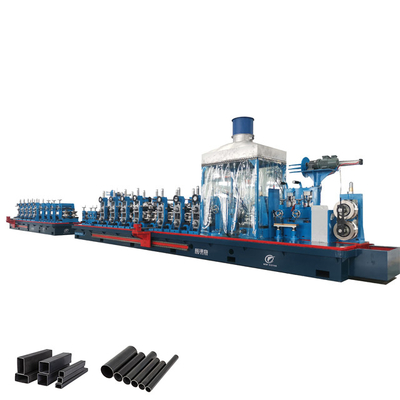

Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel

Certification
China Zhangjiagang ZhongYue Metallurgy Equipment Technology Co.,Ltd certification
China Zhangjiagang ZhongYue Metallurgy Equipment Technology Co.,Ltd certification
Customer Reviews
We have been purchase the tube mills from your company since 2007, and i am very happy that the technology is improving.

—— Mr Lim

we brought 4 mills at year of 2008, and mills are good, we are now planing to buy another two line

—— R.P.Gutpa

i am working with your company since 2 years ago, your machine quality good, and price is reasonale. Hope cooperation again

—— Mohammad Bagheri

i am from Korea, brought 2 line in 2013, machine not works in good condition, and hope we can work together again.

—— Mr Kim

i am from Ethiopia,we achieved a turnkey project last year, this company help us from machine to technical,we get a good support from here

—— Mr Hebe

I am brazil,we know this company as first tube mill supplier, they give good machine and i am agent of this company now.

—— Mr Carlos

I'm Online Chat Now

Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel

Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel
Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel
Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel

Large Image :  Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel

Product Details:
Place of Origin: Zhang jia gang
Brand Name: ZHONG YUE
Certification: CE/ISO
Model Number: ZY16-ZY660
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation according to different Model
Packaging Details: Packed in seaworthy material and fix properly in container loading
Delivery Time: 3 month to 6 month
Payment Terms: T/T+L/C
Supply Ability: 150 Sets per Year

Round Oval Rectangle Seamless Square Pipe Roll Forming Machine For Stainless Steel

Description
Type Of Welding: High Frequency Welding Application: Construction,furniture, Oil And Gas Transportation
Type Of Forming: Forming By Rollers Feature: High Speed, High Precision
Special Requirement: Can Be Design As Per Customer Requirement Name: Round Oval Rectangle Square Pipe Roll Forming Machine For Stainless Steel
High Light:

seamless square pipe roll forming machine

,

sus square pipe roll forming machine

,

seamless round pipe roll forming machine

Round Oval Rectangle Square Stainless Steel Pipe Roll Forming Machine / Tube Mill



  • Stronger Pipe Making Machine is mainly used in the production of industrial stainless steel pipe.
  • Because stainless steel pipe technology matures, has been replaced in many areas seamless (such as chemicals, pharmaceuticals, wineries, oil, food, automotive, paper, air conditioning and other industries
  • and are widely used.)
  • Automated production processes: the uncoiling, cleaning equipment, feed orientation, forming, welding, weld leveling within and outside the weld grinding, shaping, sizing, solution treatment, the final sizing, alignment, testing, spray code, length, cut off (coil), splicing and other continuous molding process. fine structure, easy operation, manufacturing, first-class quality.



Basic necessaries for the BuyerL:

Steel strips material Low-carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa
I.D Φ350~Φ450mm
O.D Φ600~1000mm
Width 60~160mm
Thickness 0.8-3.0mm
Maximum.weight ≤3000KGS



Accordingly to the market demands. We are given the standard models as blew, and this is for your reference

only, the production range and main technical can be adjustable suppose your company have special requirement.

Tube forming machine Specification
Mill Model OD range (mm) Thickness range(mm) Line Speed(m/min)
ZY-16



7.6-16

0.3-1.0 120
ZY-20 10-25.4 0.3-1.5 120
ZY-32 12.7-38.1 0.6-1.8 120
ZY-45 16-50.8 0.7-2.0 110
ZY-50 20-63.5 0.8-3.0 90
ZY-60 25.4-76.2 1.0-3.2 80
ZY-76 31.8-88.9 1.2-3.75 80
ZY-89 33.4-101.6 1.2-4.5 75
ZY-125 50.8-130 2.0-5.0 60
ZY-165 76.2-168 2.0-6.0 50
ZY-219 88.9-219 2.0-8.0 50
ZY-273 89-273 3.0-12.0 40
ZY-325 89-325 3.0-12.7 40
ZY-406 114-406 4.0-16.0 40
ZY-508 219-508 4.0-19.1 40
ZY-610 273-610 4.0-19.1 40
ZY-660 273-660 4.0-22 40



Advantage



Tube production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only tube making machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.





Brief of tube making machine application:



Tube forming machine as known of steel tube manufacturing line, using the high frequency welder and rollers to produce all kinds of steel tube, profile, etc. also widely used in construction tubes, precision tubes, auto tubes, fence, heat exchanger, furniture tube, pressure tube production, with suitable finishing equipment, machine also can capable to produce the API pipe, gas transportation, and high standard tubes and so on.





Tube forming machine production process:



According to different customer, the machinery consist by different process, but our company having the standard production process as blew, this is for your reference, suppose your company have special requirement, we could discuss and make your special design.

Uncoiler→ Shear&welding machine→ Accumulator (Cage) →Forming machine→ HF welding→ Sizing machine→ Flying saw (Cold saw) → Run out table
