|Power Source:||380v,50hz,3 Phase, Or Design As Per Local||Forming Type:||"W" Forming|
|Welding Method:||High Frequency Welding||Color:||Blue Or Confirm By Customer|
pipe rolling machine,
pipe making machine
76.2 mm BS 1387 steel tube, ASTM A 513 steel tube mill,alloy steel tube mill machine
1: Machine brief introduction

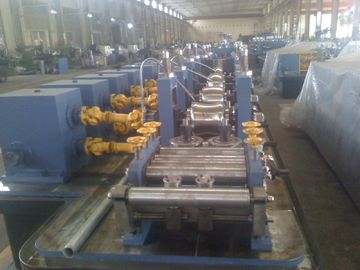

High-frequency welded tube mill machine, for the whole prodcution line, at first, the coil is loaded at the uncoiler, then but-welding the ends of coil, delivering to accumulator. After accumulator, the strip is pulled from accumulator contiousely by fixed speed, is formed to opened-pipe at forming machine, then welded by High frequency welder, de-burred, cooled, shaped and sized as round pipe and rectangluar&square pipe at the sizing area. Then the sized pipe is straightened after Turkey-head device and then cutted to fixed length by flying saw. At last, the fixed pipe is delivered from run-out table and inspected at the table.
2: Design capacity information
|Raw material||cold rolled steel, galvanized steel|
|Round tube outer diameter||25.4mm-76.2mm|
|Wall thickness Round tube||1.0mm-3.2m|
|Tube welding speed||100m/min|
3: Technical advantage
Steel tube production is an industry which need qualified machine and experienced technology link together to produce the products, that means the machine and experience are both important, our company are only Steel Pipe Making Machine manufacture whom use self-machine to produce steel tubes in large quantity, we are improving our machine with running them to get experienced technology. Choose us, you are not only get the machine from us, you are also get he experienced technology from us.
4: Production Process
5: Steel tube mill Machine specification
Accordingly to the market demands. We are given the standard models as blew, and this is for your reference only, the production range and main technical can be adjustable suppose your company have special requirement.
|Steel Pipe Making Machine Specification|
|Mill Model||OD range (mm)||Thickness range(mm)||Line Speed(m/min)|
6: Market distribution
At the beginning, we are manufacturing and selling the Steel Pipe Making Machines at domestic market only, during the opening and development of country policy, also with the improvement of the technology, we are start the export of the machinery since 2006, and now the Steel Pipe Making Machine has been export to more than 70 countries, the main market like Asia, North America, South America, Europe, Middle East, Southeast Asia and Africa. We are getting reputed in the world market.
